Intersection of Geometric Objects

Otary is only based on Shapely so you can also process your geometric objects to extract, for example, the intersection points.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
import otary as ot

im = ot.Image.from_file("../tests/data/vision/example2/sample-otary-img1.pdf")

polygon_array = np.array(
    [[60, 200], [130, 130], [270, 130.1], [270, 300], [250, 500], [60, 500]],
    dtype=np.float32
)

polygon = ot.Polygon(polygon_array)
aabb = polygon.obb().expand(1.1).rotate(30, is_degree=True)

intersections_points = aabb.intersection(polygon)

im.copy().draw_polygons(
    polygons=[aabb, polygon],
    render=ot.PolygonsRender(colors=["blue", "red"], thickness=2),
).draw_points(
    points=intersections_points,
    render=ot.PointsRender(default_color="black", thickness=10),
).show()

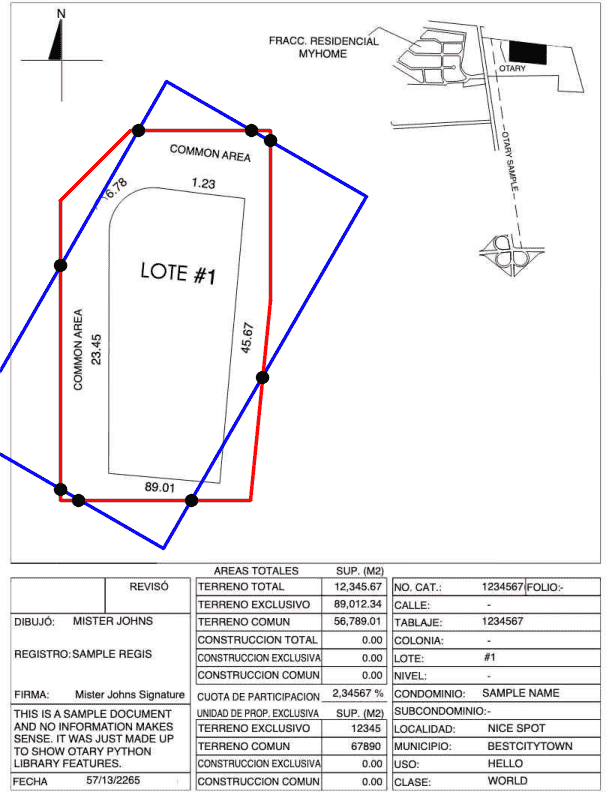

intersection
